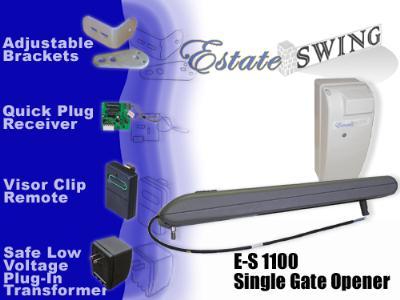

Estate Swing E-S 1100 Single Swing Gate Opener

The Estate Swing 1000AC Single Swing Gate Opener is designed to be used in a residential situation.

• Gate Length and Weight - Up to 12' in length or 550 lbs
• Gate Materials - Wood, Light Steel, Aluminum, Chain Link, and more
• Power - 12V DC system
• Solar Compatible - Yes
• Working Temperature: 24 to 101 F
• Cycles on a Fully Charged Battery - 90
• Recharge Time - 10 minutes

Estate Swing gate openers are designed to be easy to install for the average handyman. Every unit comes standard with everything needed to automate your gate, including most hardware. Also included is Estate Swings unique user directed instruction manual. Estate Swing, being closely involved with their customers, they have created the first user driven updateable manual for continuous improvement of installation ease, maintenance and trouble shooting updates.

All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The production is not outsourced, which tends to be common practice with many other manufacturers. The manufacturer is the largest (number one in sales and reputation) in the WORLD and meets or exceeds ISO 9000 regulations, which requires testing on 100% of the products being produced. ISO 9000 means all parts are tested 3 times for resistance, vibration, and longevity. The Estate Swing E-S 1100 exceeds UL325 standards for anti-crushing safety. The Estate Swing E-S 1100 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with safety. Not only does it have the standard adjustable force settings but it also has normally closed safety circuits, provided a second chance for safety if an obstruction detection device fails.

The Estate Swing E-S 1100 Single Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run 16-gauge two-conductor stranded low voltage to a household outlet within 1000’ of the operator. Once at the outlet simply attached your wire to the provided plug-in transformer. You could also power your E-S 1100 with a solar panel (purchased separately).

.

FEATURES:

• Opening/Closing Soft Stop – Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns the motor revolutions between the start and stop of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gates destination point.
• Advanced Gear System - The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-S 1100 uses a planetary gear system cutting down on bearing wear and motor deterioration.
• All Weather Compatible - This arm can handle the cold, heat and everything in between. The arm has no exposed shafts that can become iced over. The housing is a durable powder-coated die cast aluminum body, which gives it greater stability and strength. The bottom also comes fitted with a dust blocking strip to prevent dirt from entering from the bottom.
• One Touch EZ Programming – The Estate Swing E-S 1100 can be programmed by pressing one button. The control board is built to be inherently intelligent and learns the opening and closing times automatically. There are no manual adjustments on the arm need to be made! Simply place a permanent physical stop in the closed position.
• Highest Level of Safety – The Estate Swing E-S 1100 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-S 1100 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-S 1100 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-S 1100 will not operate, keeping your loved ones and assets safe. Gate Openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
• Quick, Safe and Secure Manual Release – Every unit comes with a key chain ready manual release key. In the rare case power has failed and the battery lost its charge, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
• Preset Gate Function Logics – At the touch of a button you can change multiple settings on your gate opener to be focused towards safety, convenience, etc.
• Adjustable Performance Features – Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force and Speed.
• 12 Volt Output Terminals – Convenient for accessories requiring power. i.e. locks, sensors, etc.
• Control Board, Easy Read Diagnostics – To save you time and trouble, Estate Swing has included a LED light diagnostic on the control board. This lets you know if connections are or are not made to quickly diagnose problems and efficiently fix them to resume normal gate operation.
• Quick Plug Radio Receiver - The easiest receiver to use on the market, plus it is a Deliberate Attempt receiver. This means that the button of the remote must be held for a second and anything shorter will be considered a mistake and be ignored. This adds safety by not allowing you to reverse your gate by accident into the path of a vehicle or pedestrian. There are no wires to run, simply set your dipswitch combination and plug it into the board. It is 318Mhz, which is a fairly common frequency. Other remotes such as Mighty Mule®, GTO/PRO®, Pulsar®, Allstar® and many others may work with the system and it is also HomeLink compatible.
