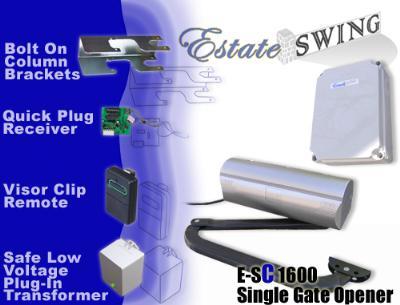

The Estate Swing C1600 Column Mounting Single Swing Gate Opener features a design provide versatile mounting options for a residential situation of up to four homes.

• Gate Length and Weight - Up to 16' in length or 800 lbs
• Gate Materials - Wood, Steel, Aluminum, Vinyl, Chain Link, and more
• Gate Post or Column Size (pull to open design) - Maximum 24"x24" with gate mounted in the center
• Push to Open - No
• Power - Low Voltage Transformer (included; 24V AC) and Backup Batteries (optional; not included)
• Solar Compatible - No; must be within 200' of power source
• Working Temperature: -4 to 131 F
• Cycles per Hour - Continuous Duty; 100+
• Dimensions - Arm: 18.9"x15.35"x1.77"; Motor: 16.14"x5.12"x5.12"

The Estate Swing C1600 Column Mounting Single Swing Gate Opener meets the highest standards in safety. To begin with, the Estate Swing C1600 meets and exceeds UL 325 standards for anti-crushing safety. The Estate Swing C1600 also meets or exceeds ISO 9000 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of this Estate Swing actuator are made in one factory. The diligent observation of safety standards ensures that this Estate Swing actuator not only meets safety requirements, but also offers superior quality.

The Estate Swing C1600 also offers convenient operation options. The low voltage system eliminates the need to run 110 AC to the electric gate; a low voltage wire that plugs into a household outlet within 200’ of the automated gate operator is sufficient. Power is drawn directly from the 24 V transformer, so this Estate Swing actuator is capable of constant duty; this means that it can run many cycles consecutively without draining a battery (since the optional batteries are only backup). Also, the Estate Swing C1600 is also compatible with a variety of accessories.

FEATURES:

• Soft Start/Stop - This is a feature in which the control board, during the easy set up process, learns where the opening and closing points are for the electric gate. Then, during normal operation, the electronic gate operator automatically slows the motion of the gate to smoothly meet with the driveway gate's destination point, reducing wear and tear on theautomated gate and electric gate motor. Optional Limit Switches - This Estate Swing gate operator can be equipped with limit switches for point-positive stopping.
• Large Opening Arch Capabilities - The Estate Swing C1600 is able to open driveway security gates up to 120 degrees, well beyond most other swing gate controllers. This large opening arch accommodates driveways that curve in front of the electronic gate by allowing room for a vehicle to enter.
• Extended Setback - Most electric gate operators have a required setback for the rear pivot point on the post. This pivot point setback can make it difficult to mount driveway gate openers to columns. The Estate Swing C1600 provides the solution with its extended setback, allowing it to be mounted to most columns or posts. Plus custom mounting brackets are available, as well.
• Large, 24V Motor - It is one of the largest swing gate motors available for any residential electronic gate opener. It is capable of handling electric gates up to 600 lbs, which is more than many heavily ornamented electric security gates weigh.
• Advanced Gear System - The advanced gear system is essential to the durability and power of the swing gate opener. The design of this electronic gate motor enhances reliability and control, and cuts down on overall wear and tear on the automated gate motor.
• Control Board, Easy Read Diagnostics - The LED light diagnostic on the control board permits easy diagnostics of problems or missing connections. This allows efficient repair and swift continuation of normal driveway security gate operation.
• One Touch EZ Programming - The Estate Swing C1600 can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically. There are no manual adjustments to be made.
• Preset Gate Function Logics - At the touch of a button, alter multiple settings on the automated gate opener at once to be focused toward safety, convenience, etc.
• Adjustable Performance Features - Adjust the performance the driveway gate opener to fit individual tastes, lifestyle, and needs. Adjust features like pause times, opening/closing delays, static force, etc.
• Quick Plug Radio Receiver - The remote receiver is easy to use and the design means there are no wires to run; just set the dip switch combination and plug it into the board. It is compatible with a number of wireless keypads and intercoms.
• 24 Volt Output Terminals - For convenient addition of accessories requiring power like locks, sensors, and more.
• Quick, Safe and Secure Manual Release - Every Estate Swing gate operator comes with a manual release key that can be used should the power fail and the backup battery is not charged. This ensures that the electric gate can be opened without damaging or disconnecting any components.
• Highest Level of Safety - In addition to meeting or exceeding many safety standards, this Estate Swing actuator's safety devices function on a normally closed circuit. This means that if a safety device does not activate for any reason, the gate door opener will not operate, keeping loved ones and assets safe. Most other driveway gate openers function on a normally open circuit, which means the consumer does not know the safety device is not working properly until it is too late.
